Crawler bulldozer KRON D17

Operational weight

18,700 kg including ripper

Track width

510 mm

Blade volume

4,55 m3

Скачать брошуру PDF

Скачать брошуру PDF
  • The bulldozer is equipped with a powerful, energy-saving, environmentally friendly engine with low noise;
  • Power shift hydraulic box with torque converter is ideal for all operating conditions;
  • High torque reserve and dry multi-plate clutch provide reliable dozer performance;
  • With thoughtful design, a comfortable operator's cabin allows you to work longer with less fatigue and higher productivity;
  • Depending on the needs of the enterprise, the user is offered a list of additional equipment: Straight blade, Waste blade, Angle blade, U-shaped blade (For coal) and ripper.

Description

Description

Описание

KRON D17 is a hydraulic driven bulldozer with a rated power of 131 kW (178 hp) suitable for general earthworks, construction, quarrying, agricultural work, bulk material handling, etc.

Data sheet

Main technical parameters

Model

D17

Track width, mm

510

Overall dimensions of the blade (Straight blade) WxH, mm

3390х1150

Blade volume (Straight blade), m3

4,55

Maximum deepening of the blade (Straight blade), mm

540

Ground clearance, mm

405

Ground pressure, MPa

0.067

Forward speed, km/h

9,6

Reversing speed, km/h

12,5

Transmission system

Planetary gear, multi-plate clutch, hydraulically actuated, positively lubricated by gear pump, 3 speeds forward and 3 speeds reverse Planetary gear, multi-plate clutch, hydraulically actuated, positively lubricated by gear pump, 3 speeds forward and 3 speeds reverse

Engine

Engine

Manufacturer

WEICHAI

Model

WD10G178E25

Rated power, kW

131

Rated speed, rpm

1850

Dimensions and weight

Dimensions and weight

Overall length, mm

5140

Overall width, mm

3390

Overall height, mm

3032

Operating weight (without additional equipment), t

18,7

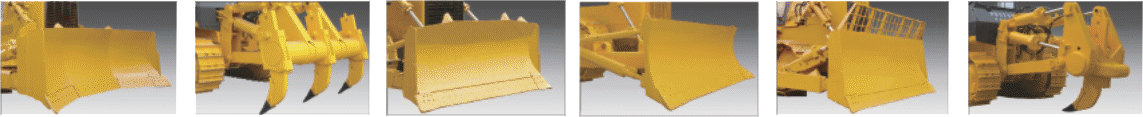

Optional equipment

Optional equipment

Label

  1. Air conditioning
  2. U blade
  3. 3-tooth ripper
  4. Straight blade
  5. Angle Blade
  6. Waste dump
  7. single ripper
