Crawler bulldozer KRON D23S

Operational weight

26900 kg

Track width

910 mm

Blade volume

4,3 m3
  • The bulldozer is equipped with a powerful, energy-saving, environmentally friendly engine with low noise;
  • Power shift hydraulic box with torque converter is ideal for all operating conditions;
  • High torque reserve and dry multi-plate clutch provide reliable dozer performance;
  • With thoughtful design, a comfortable operator's cabin allows you to work longer with less fatigue and higher productivity;
  • Depending on the needs of the enterprise, the user is offered a list of additional equipment: Straight blade, Waste blade, Angle blade, U-shaped blade (For coal) and ripper.

Description

Description

Описание

The KRON D23S bulldozer is a machine for wetter conditions, suitable for construction work in areas with soft soil, wetlands and swamps, suitable for general earthworks with reduced ground pressure, for digging, leveling and compacting landfills.

Data sheet

Data sheet

Model

D23S

Track width, mm

910

Overall dimensions of the blade (Straight blade) WxH, mm

4365х1250

Blade volume (Straight blade), m3

4,3

Maximum deepening of the blade (Straight blade), mm

550

Ground clearance, mm

405

Ground pressure, MPa

0,041

Forward speed, km/h

11,2

Reversing speed, km/h

13,2

Transmission system

Planetary gear, multi-plate clutch, hydraulically actuated, forced lubrication by gear pump, 3 speeds forward and 3 speeds reverse

Engine

Engine

Manufacturer

CUMMINS

Model

NT855-C280S10

Rated power, kW

175

Rated speed, rpm

1800

Dimensions and weight

Dimensions and weight

Overall length, mm

6060

Overall width, mm

4365

Overall height, mm

3435

Operating weight (without additional equipment), t

26,9

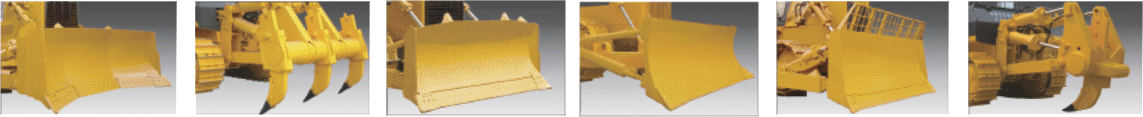

Optional equipment

Optional equipment

Label

  1. Air conditioning
  2. U blade
  3. 3-tooth ripper
  4. Straight blade
  5. Angle Blade
  6. Waste dump
  7. single ripper
